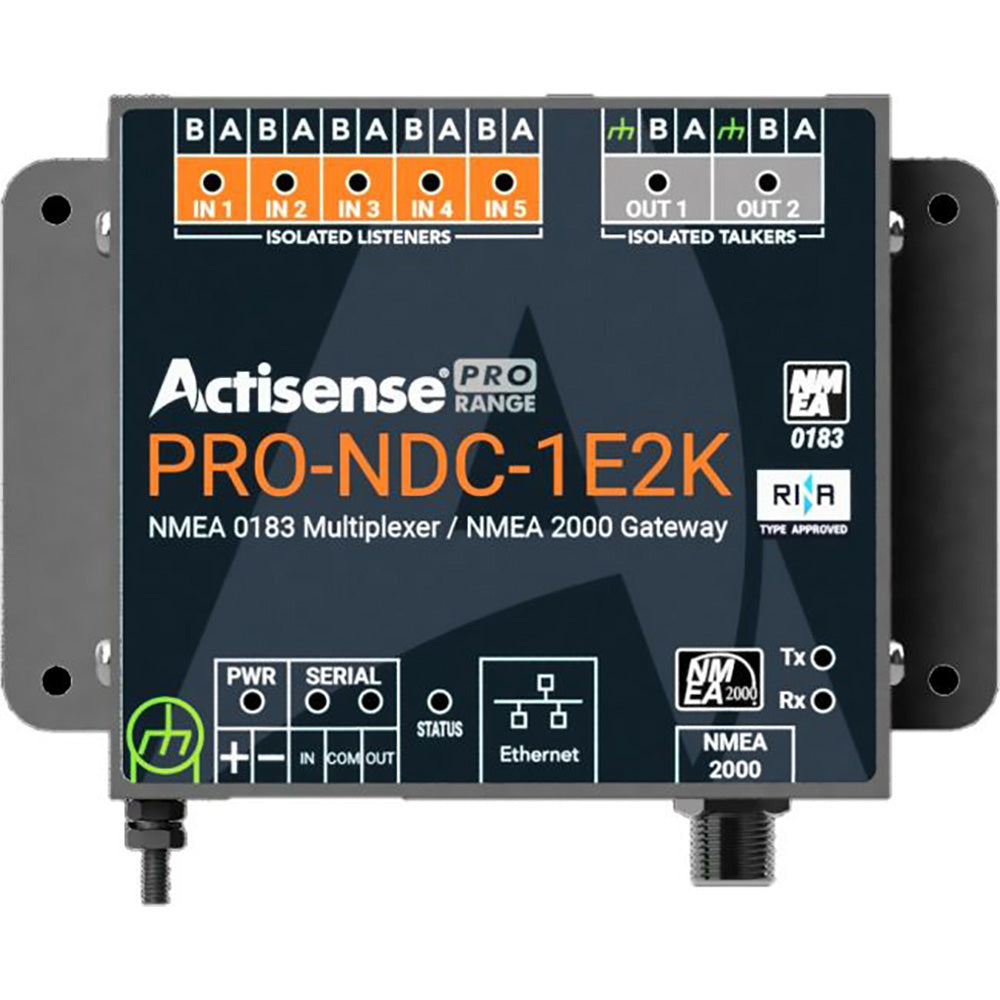

Actisense PRO NMEA 0183 MultiplexerNMEA 2000 Gateway PRONDC1E2K
Actisense PRO NMEA 0183 Multiplexer/NMEA 2000 Gateway [PRO-NDC-1E2K]
Sale price  $637.14 Regular price  $707.94

PRO NMEA 0183 Multiplexer/NMEA 2000 Gateway

Interconnectivity, reimagined!

The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…

Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.

Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2K

Features:

  • Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
  • Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
  • Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
  • Easy to configure using the web based UI, no need to manually enter and edit strings of text.
  • RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
  • Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
  • Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network.
  • Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment.
  • NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
  • NMEA 2000 data streaming over Ethernet.
  • 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
  • Type-approved (RINA).
  • NMEA 0183 Ethernet streaming
  • NMEA 2000 Ethernet streaming
  • NMEA 2000 output via M12
  • 5x Configurable Opto-isolated NMEA 0183 inputs.
  • 2x Configurable ISO-Drive isolated NMEA 0183 outputs.
  • 1x Bi-directional, configurable, isolated serial port.
  • Automatic baud rate matching on inputs.
  • Advanced data filtering / routing.
  • Free firmware updates making the device future-proof.
  • Diagnostic LEDs on all inputs and outputs.
  • Bi-colour status LED.
  • Panel mountable.
  • Stainless Steel housing for added durability
  • Quick and easy to install
  • Configuration using standard web browser, no PC operating system compatibility issues
  • Advanced features solve NMEA 0183 data routing problems
  • Fully isolated with ISO-Drive technology for peace of mind
  • Easy firmware updates make the device future-proof
  • Type Approved (RINA)

Technical Specifications:

Power Supply

  • Input supply voltage - 9 to 35 V DC
  • Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
  • Input protection - Continuous reverse polarity, transient overvoltage and ESD protection
  • Power indicator - LED, Blue – indicates unit is functioning correctly
  • Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

NMEA 0183 Port – Listener & Talker

  • Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners
  • Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers
  • Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
  • Speed / baud rate - 4800 to 38400 bps
  • Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
  • Talker Output Current Drive - 20 mA maximum per output
  • Talker Output Protection - Short circuit and ESD
  • Talker Data Indicator - LED, Orange (Flashes with data rate)
  • Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
  • Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
  • Listener Data Indicator - LED, Green (Flashes with data rate)
  • Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)

Serial Port

  • Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
  • Speed / baud rate - 115200 bps
  • Output voltage drive - >= 2.1V (differential) into 100 ohm
  • Output current drive - 20 mA max.
  • Output protection - Short circuit and ESD
  • Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
  • Input protection - Current limited, overdrive protection to 40 VDC and ESD protection
  • Data Indicators - LED’s: Green = Receive, Orange = Transmit
  • Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Ethernet Port

  • Host interface - 10/100BaseT, automatic polarity detection
  • Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
  • Connector - RJ45
  • Indicators - Green – Link, Yellow – 100 Mbps

NMEA 2000 Port

  • Compatibility - NMEA 2000 Certification Pending
  • Speed / baud rate - 250 kbps
  • Connectivity - M12 male (A-coded) connector

Isolation

  • NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V
  • NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V
  • Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
  • Ethernet Port - 2kv for 60s
  • NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V

Mechanical

  • Housing Material - 316 Stainless Steel
  • Dimensions - 139mm (W) x 98mm (H) x 26mm (D)
  • Weight - 360g
  • Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications

  • EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
  • Compass Safe Distance - 300mm
  • Type Approval Certificate - RINA
  • Operating Temperature - -25 to +70°C
  • Storage Temperature - -40 to +85°C
  • Relative Humidity (RH) - 95% @ 55°C
  • Environmental Protection - IP40
  • Guarantee - 5 Years when registered
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Data Interface: NMEA 0183
  • Box Dimensions: 2"H x 6"W x 10"L WT: 1.05 lbs
  • UPC: 5060998710751

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
